CONSTRUCTION:

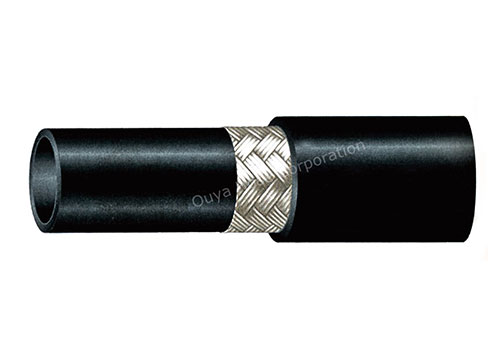

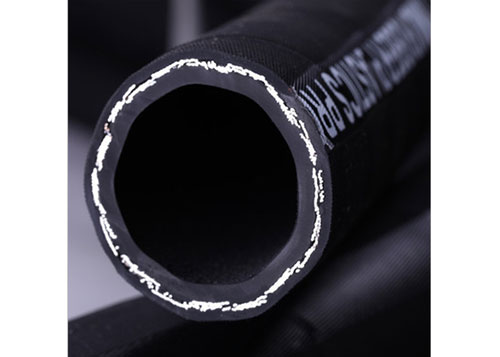

This hose consists of an inner tube of oil synthetic rubber, a single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils, fuels, lubricants,emulsion, hydrocarbons etc.
WORKING TEMPERATURE: from -40℃ up to +100℃
SPECIFICATION: SAE 100R1AT / EN853 1SN
| Hose Size | Inside Diameter mm | Reinforcement Diameter mm | Outside Diameter mm | Outside layer thickness mm | Working Pressure MPa |
Proof Pressure MPa |
Burst Pressure MPa |
Min. Bend Radius mm |
|||
| Min | Max | Min | Max | Max | Min | Max | |||||
| 6.3 | 6.1 | 7.0 | 10.6 | 11.7 | 14.1 | 0.8 | 1.5 | 22.5 | 45.0 | 90.0 | 100 |
| 8 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 0.8 | 1.5 | 21.5 | 43.0 | 86.0 | 115 |
| 10 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 0.8 | 1.5 | 18.0 | 36.0 | 72.0 | 130 |
| 12.5 | 12.3 | 13.5 | 17.5 | 19.1 | 21.5 | 0.8 | 1.5 | 16.0 | 32.0 | 64.0 | 180 |
| 16 | 15.5 | 16.7 | 20.6 | 22.2 | 24.7 | 0.8 | 1.5 | 13.0 | 26.0 | 52.0 | 200 |
| 19 | 18.6 | 19.8 | 24.6 | 26.2 | 28.6 | 0.8 | 1.5 | 10.5 | 21.0 | 42.0 | 240 |
| 25 | 25.0 | 26.4 | 32.5 | 34.1 | 36.6 | 0.8 | 1.5 | 8.7 | 18.0 | 36.0 | 300 |
| 31.5 | 31.4 | 33.0 | 39.3 | 41.7 | 44.8 | 1.0 | 2.0 | 6.2 | 13.0 | 26.0 | 420 |
| 38 | 37.7 | 39.3 | 45.6 | 48.0 | 52.1 | 1.5 | 2.5 | 5.0 | 10.0 | 20.0 | 500 |
| 51 | 50.4 | 52.0 | 58.7 | 61.9 | 65.9 | 1.5 | 2.5 | 4.0 | 8.0 | 16.0 | 630 |
