CONSTRUCTION:

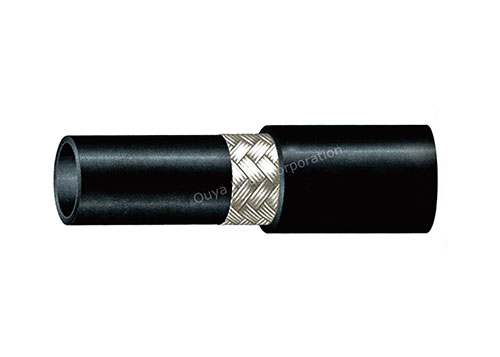

This hose consists of an inner tube of oil synthetic rubber, a single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils, fuels, lubricants,emulsion, hydrocarbons etc.
WORKING TEMPERATURE: from -40℃ up to +100℃
SPECIFICATION: SAE 100R17
| Hose Size mm |
Inside Diameter | Outside Diameter | Working Pressure MPa |
Proof Pressure MPa |
Burst Pressure MPa |
Min. Bend Radius mm |
| mm | mm | |||||
| 6.3 | 6.4 | 12.2 | 22.5 | 45 | 90 | 38 |
| 8 | 7.9 | 15.1 | 22.5 | 45 | 90 | 46 |
| 10 | 9.5 | 16 | 22.5 | 45 | 90 | 51 |
| 12.5 | 12.7 | 20.2 | 22.5 | 45 | 90 | 71 |
| 16 | 15.9 | 25.2 | 22.5 | 45 | 90 | 76 |
| 19 | 19 | 29.1 | 22.5 | 45 | 90 | 97 |
| 25 | 25.4 | 37.6 | 22.5 | 45 | 90 | 115 |
