CONSTRUCTION:

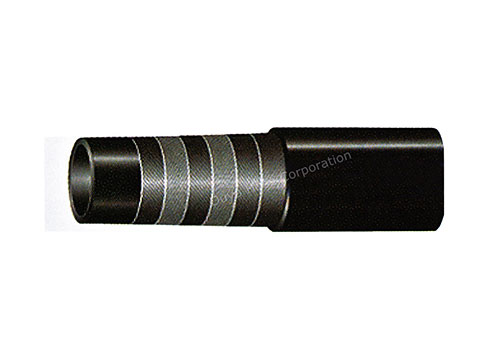

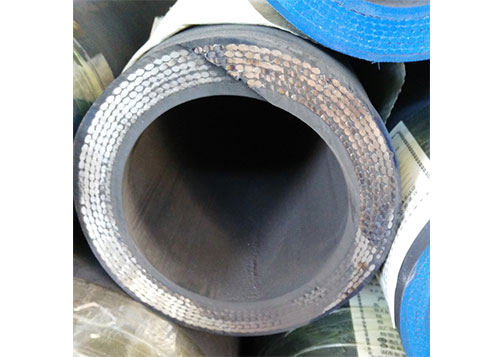

This hose consists of an inner tube of oil synthetic rubber, six spiral wire reinforcements, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as glycol , mineral oils,fuels, lubricants,emulsion,hydrocarbons etc.
WORKING TEMPERATURE: from -40℃ up to +120℃
SPECIFICATION: SAE 100R15
| Hose Size mm | Nominal inner diameter mm | Reinforcement Outside Diameter mm |
Hose Outside Diameter mm |
Working Pressure MPa |
Proof Pressure MPa |
Burst Pressure MPa | Min. Bend Radius mm |
|
| Min. | Max. | Max. | Max. | |||||
| 10 | 9.3 | 10.1 | 20.3 | 23.3 | 42 | 84 | 168 | 150 |
| 12.5 | 12.3 | 13.5 | 24 | 26.8 | 42 | 84 | 168 | 200 |
| 19 | 18.6 | 19.8 | 32.9 | 36.1 | 42 | 84 | 168 | 265 |
| 25 | 25 | 26.4 | 38.9 | 42.9 | 42 | 84 | 168 | 330 |
| 31.5 | 31.4 | 33 | 48.4 | 51.5 | 42 | 84 | 168 | 445 |
| 38 | 37.7 | 39.3 | 56.3 | 59.6 | 42 | 84 | 168 | 530 |
