CONSTRUCTION:

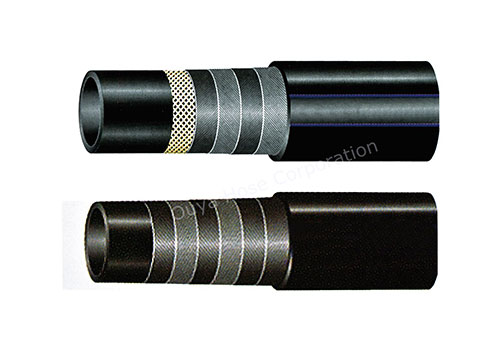

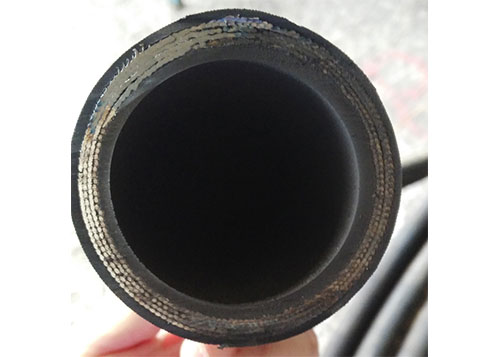

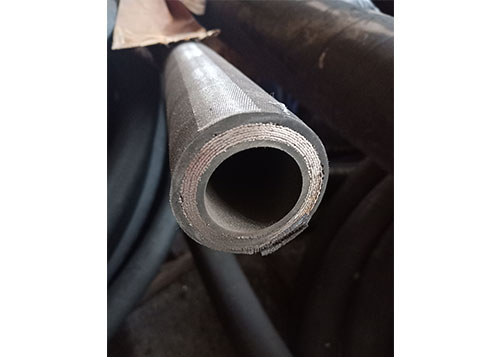

This hose consists of an inner tube of oil synthetic rubber, four or six spiral wire reinforcements, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as glycol , mineral oils,fuels, lubricants,emulsion,hydrocarbons etc.
WORKING TEMPERATURE: from -40℃ up to +120℃
SPECIFICATION: SAE 100R13
| Hose Size mm |
Nominal inner diameter mm | Reinforcement Outside Diameter mm |
Hose Outside Diameter mm |
Working Pressure MPa |
Proof Pressure MPa |
Burst Pressure MPa | Min. Bend Radius mm |
|||
| Min. | Max. | Min. | Max. | Min. | Max. | |||||
| 19 | 18.6 | 19.8 | 28.2 | 29.8 | 31 | 33.2 | 35 | 70 | 140 | 240 |
| 25 | 25 | 26.4 | 34.9 | 36.4 | 37.6 | 39.8 | 35 | 70 | 140 | 300 |
| 31.5 | 31.4 | 33 | 45.6 | 48 | 48.3 | 51.3 | 35 | 70 | 140 | 420 |
| 38 | 37.7 | 39.3 | 53.1 | 55.5 | 55.8 | 58.8 | 35 | 70 | 140 | 500 |
| 51 | 50.4 | 52 | 66.9 | 69.3 | 69.5 | 72.7 | 35 | 70 | 140 | 630 |
