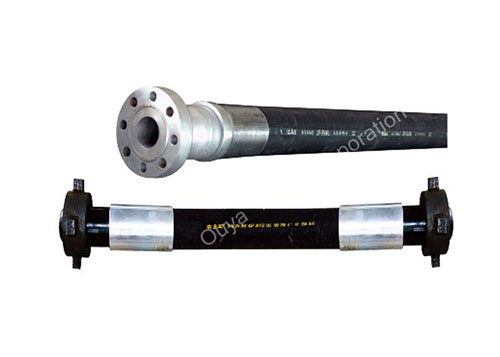

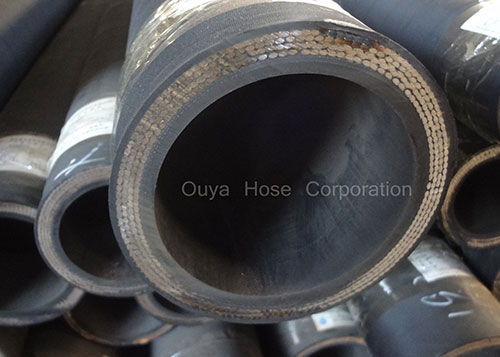

CONSTRUCTION: It is composed of an inner rubber protection layer, steel wire spiral reinforced layer, and wear resistant synthetic rubber cover.
APPLICATIONS: For carrying natural gas, petroleum, etc. on sea floor.
SPECIFICATION: Q/HOY04-2013
| Hose Size | Inside Diameter mm |
Reinforcement Diameter mm |
Outside Diameter mm |
Working Pressure | Proof Pressure | Burst Pressure | Min. Bend Radius mm |
Weight kg/m |
|||
| MPa | Psi | MPa | Psi | MPa | Psi | ||||||
| 2sp-152-8 | 152±2.0 | 173±3.0 | 179±4.0 | 8 | 1160 | 12 | 1740 | 16 | 2320 | 2280 | 18 |
| 2sp-203-8 | 203±2.0 | 223±3.0 | 230±4.0 | 8 | 1160 | 12 | 1740 | 16 | 2320 | 3050 | 24 |
| 2sp-254-8 | 254±2.0 | 275±3.0 | 282±4.0 | 8 | 1160 | 12 | 1740 | 16 | 2320 | 3810 | 30 |
| 2sp-305-8 | 305±2.0 | 330±3.0 | 338±4.0 | 8 | 1160 | 12 | 1740 | 16 | 2320 | 4510 | 36 |
| 4sp-152-16 | 152±2.0 | 184±3.0 | 192±4.0 | 16 | 2320 | 24 | 3480 | 32 | 4640 | 2580 | 24 |
| 4sp-203-16 | 203±2.0 | 236±3.0 | 243±4.0 | 16 | 2320 | 24 | 3480 | 32 | 4640 | 3350 | 31 |
| 4sp-254-16 | 254±2.0 | 285±3.0 | 292±4.0 | 16 | 2320 | 24 | 3480 | 32 | 4640 | 4110 | 39 |
| 4sp-305-16 | 305±2.0 | 341±3.0 | 350±4.0 | 16 | 2320 | 24 | 3480 | 32 | 4640 | 4810 | 47 |
