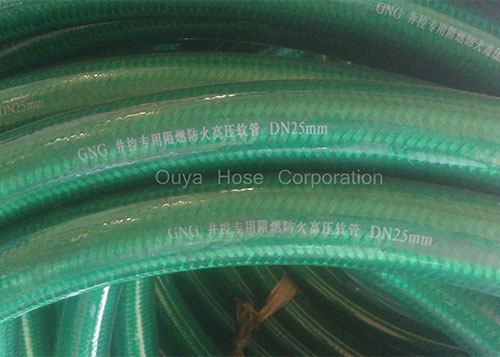

CONSTRUCTION: High pressure steel wire spiral rubber hose, covered with fire resistant paint coat, steel wire braided layer, and anti-flaming layer.

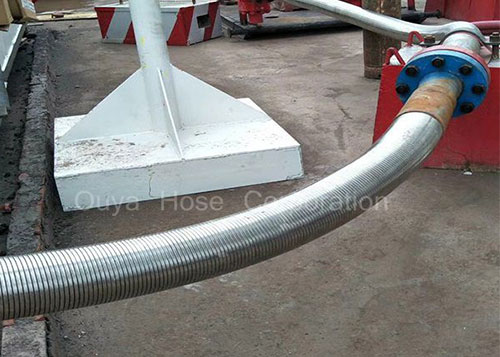

APPLICATIONS: It is mainly used in high temperature surroundings and conditions having heat source or heat radiation source, such as oil field well-control, metal smelts, and chemical industry.
SPECIFICATION: API Spec 16C
| Hose Size | Inside Diametermm | Reinforcement Diameter mm |
Outside Diameter mm |
Working Pressure | Proof Pressure | Burst Pressure | Min.Bend Radius mm |
Temperature℃ | |||
| MPa | Psi | MPa | Psi | MPa | Psi | ||||||
| φ13(1/2 ) | 13±0.5 | 22.2±0.8 | 44±1.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 230 | 750 |
| φ16(5/8 ) | 16±0.5 | 26±0.8 | 47±1.5 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 260 | 750 |
| φ19(3/4) | 19±0.5 | 30±0.8 | 52±1.5 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 300 | 750 |
| φ25(1) | 25±0.8 | 36±0.8 | 59±1.5 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 360 | 750 |
| φ32(11/4) | 32±0.8 | 44±0.8 | 69±2.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 470 | 750 |
| φ38(11/2) | 38±1.0 | 50.8±1.0 | 76±2.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 570 | 750 |
| φ51(2) | 51±1.0 | 63.8±1.0 | 91±2.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 740 | 750 |
| φ102(4) | 102±1.0 | 129.0±1.0 | 157±2.0 | 34.5 | 5000 | 69 | 10000 | 87.5 | 15000 | 1500 | 750 |
